Soiltech Beacon Environmental Sensor – Soil Moisture, Canopy Temp & Storage Monitoring

Description

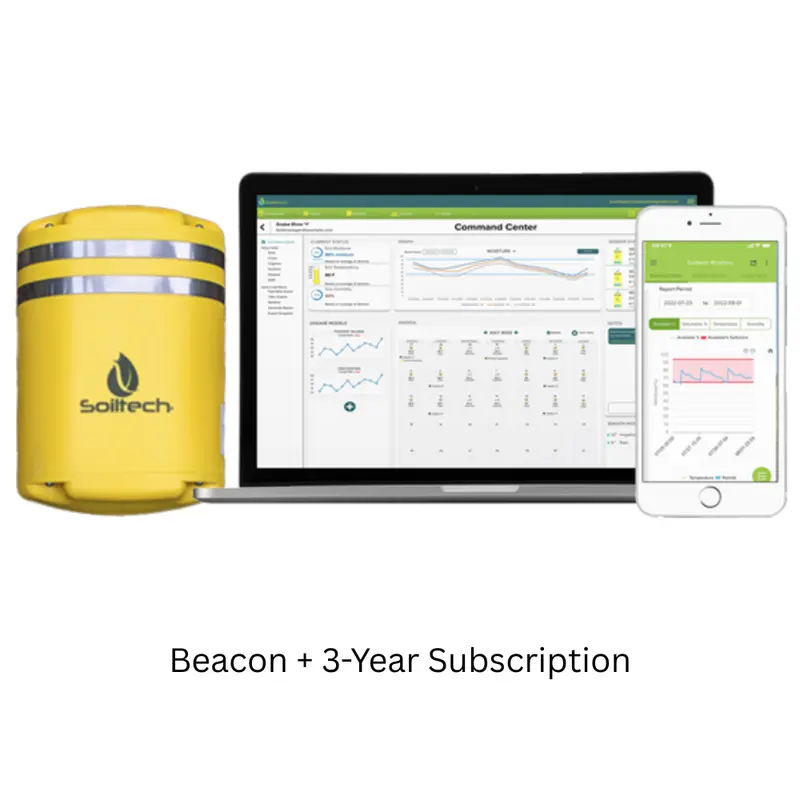

Soiltech Beacon | Soil, Canopy, & Storage Monitoring Sensor

The Beacon is a rugged, wireless device that follows the crop through every stage of its development, from planting through growth and harvesting to transportation and storage.

The Beacon arrives pre-calibrated, fully charged, and assigned to the user account. These multipurpose devices can be buried for below-ground data collection, added to a storage pile to track temperature and humidity, or placed in the canopy as a weather station. The Beacon collects real-time data and synchronizes it with the Signal platform for further analysis and decision-making. Signal platform requires subscription that can be bundled or purchased separately year-to-year.

The Beacon sensor can be planted, harvested, and transported with crops, delivering data throughout the entire product lifecycle via Global Cellular and Local Bluetooth Low Energy channels. Beacon sensors include, Soil Moisture, Soil Temperature, Internal Humidity, Ambient Temperature, Ambient Humidity, GPS Location, Device Orientation, Impact/Bruise Detection, and Synchronized Clock.

Beacon Features

• Data Points Tracked: Moisture | Temperature | Electrical Conductivity | Humidity | Crop Damage | Location | Gases | Rain | Wind
• Year-over-year reporting and analysis
• Ready to install right out of the box
• Easy charging for reuse (The Beacon contains an internal rechargeable LiPo battery that will last more than a year on a full charge and a standard reporting frequency (15 minute samples, reported every 4 hours). There are internal debug LEDS and a buzzer used for the user interface.)
• Ability to calibrate data

Standard Beacon functionality can be expanded by swapping out the end-caps containing additional sensors and features.

Optional Additional Configurations (Sold Separately)

• Field Antenna (Recommended for areas with poor cell service or if the device will be buried more than 1ft under the soil.)
• Rugged Antenna (up to 25ft conduit wrapped cable + antenna, with temperature/RH/USB port)
• Weather Station (Rain Gauge + Wind Speed/Direction)
• Rain gauge
• Wind Speed/Direction
• CO2
• O2

Soiltech Signal (Bundle Option or can be purchased Separately Year-to-Year)

The Signal Platform is the software that depicts real-time data collected by the Beacon, integrating soil moisture, crop damage, temperature, humidity, and location into a robust set of agronomic insights.

• Centralized data overview for all devices
• Alert thresholds notify you of potential problems in the field
• GPS data layered with NRCS soil data
• Customizable soil types, safe zones, alert timing, and more
• Accessible from a desktop or as an app on your iOS or Android device
• Historical data available
• Monitor 25+ Crop Types: Row Crops | Permanent Crops | Vegetables | Grapes | Cotton | Hemp | Tree Fruit | Hops | Berries | Herbs | & More!
• Specific Crop Monitoring Data

Monitor at a Whole New Level

• Moisture: Measure the moisture levels of your soils and storage environments in real time.
• Humidity: Monitor the humidity in your fields and throughout your product supply chain.
• Temperature: Understand your product’s climate conditions for more informed decisions.
• Crop Damage: Track the condition of your crop from field to transport to storage.
• Location: Pinpoint the location of your product at any time throughout its supply chain.

Manuals & Literature

• Quick Start Guide
• Beacon Datasheet
• Beacon Postcard
• Soiltech Insights Overview
• Beacon Off-Season Storage
